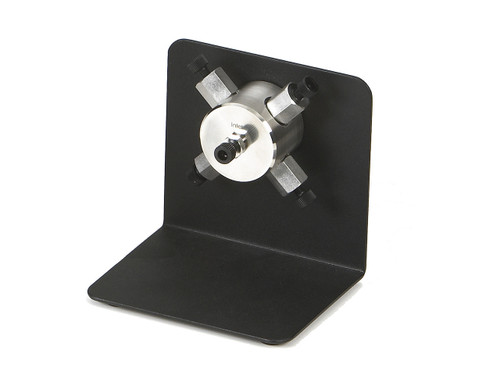

QuickSplit™ Multiport Fixed Flow Splitters

This easy to use “plug and play” device comes with a predefined split ratio eliminating tedious adjustments to capillary tubing.  Split ratio changes are accomplished by changing the resistor set.  The split ratio is determined by the ratio of fluid resistors installed in the splitter manifold.  Divides the incoming flow stream into 3 or 4 channels.  The QuickSplit Multiport Fixed Flow Splitter is ideal for applications that use multiple detectors and/or a fraction collector. Split ratios can be configured to be identical in each channel or custom configured to accommodate specific flow rates at each channel.  The low internal dead volume prevents excessive dispersion and the replaceable inlet filter insures robust operation.  Available in models for analytical and semi-preparative inlet flow rates.  The pressure drop across the multiport fixed splitter for post column applications is typically low, less than 500 PSI.

Custom Split Ratios

The multiport Fixed Flow Splitters are all custom split ratio.  Please contact ASI technical support for additional information about custom splitters.  We will gladly assist you in determining the best splitter configuration for your application.
