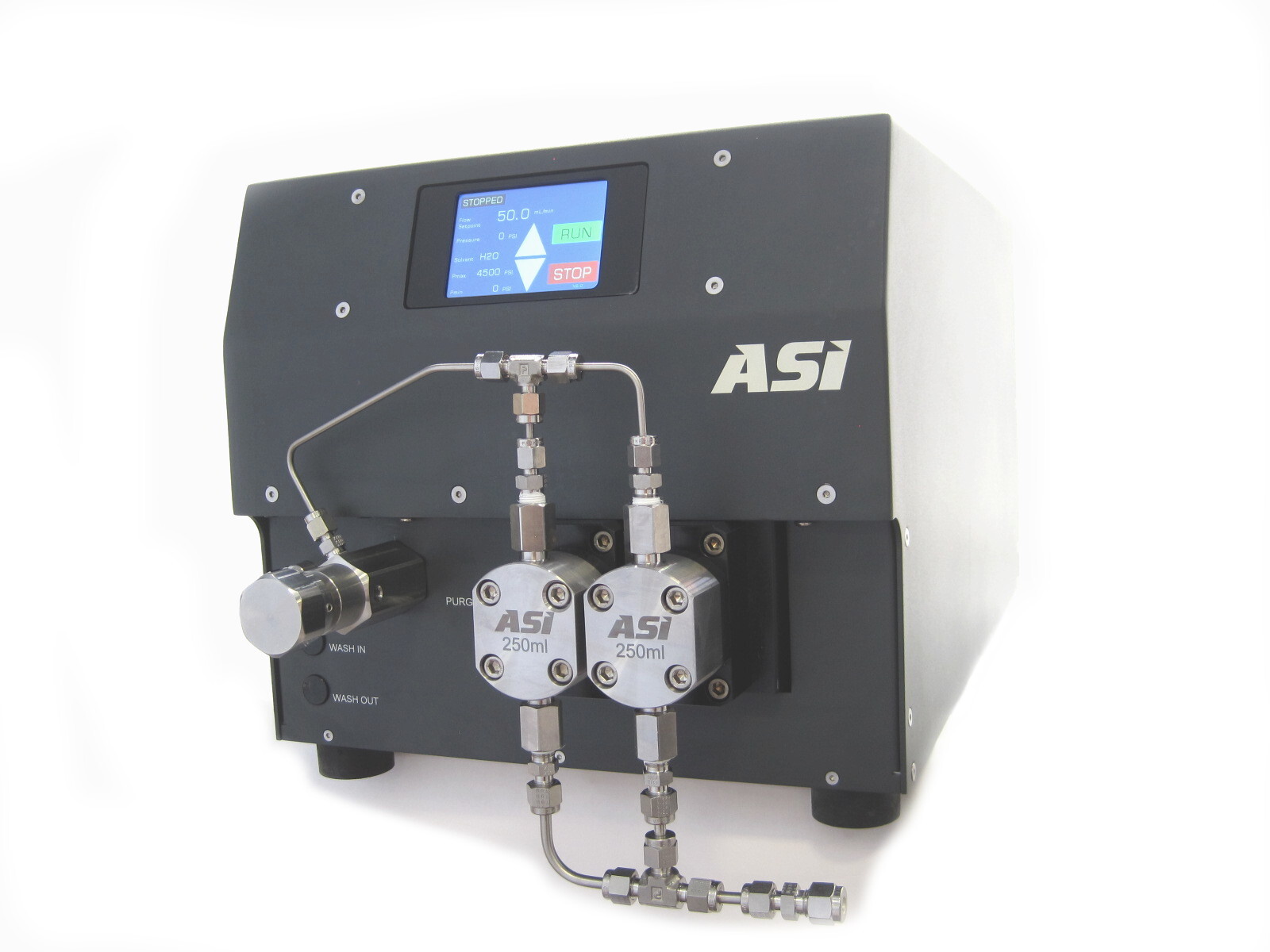

ASI supplies custom OEM pump assembly solutions545-546-pump-front-view.jpg


Process Instrumentation

Pharmaceutical Manufacturing

Supercritical Fluid Chromatography

Preparative Chromatography

Biotech and SEC/GPC Systems

and More

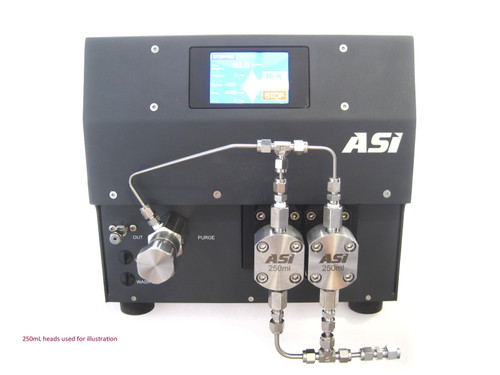

ASI 545 Series Features:


  • Intuitive Touchscreen display
  • USB-serial connection
  • Computer GUI and Modbus RTU communications via USB or RS485
  • Available in Stainless Steel, Titanium and Biocompatible PEEK
  • 150 mL/min., 250 mL/min., 500 mL/min. and 1,500 mL/min. available
  • Self-priming Pump Head: Integral prime/purge for rapid solvent changes and self-priming
  • Solvent Compressibility Compensation: User can select from a library of 15 solvents and 14 additional user-configured solvents
  • Easy Maintenance: All user serviceable components are accessed via the front panel and Cartridge seal design makes seal replacement easy


Option #1: Mechanical Pump Assembly only

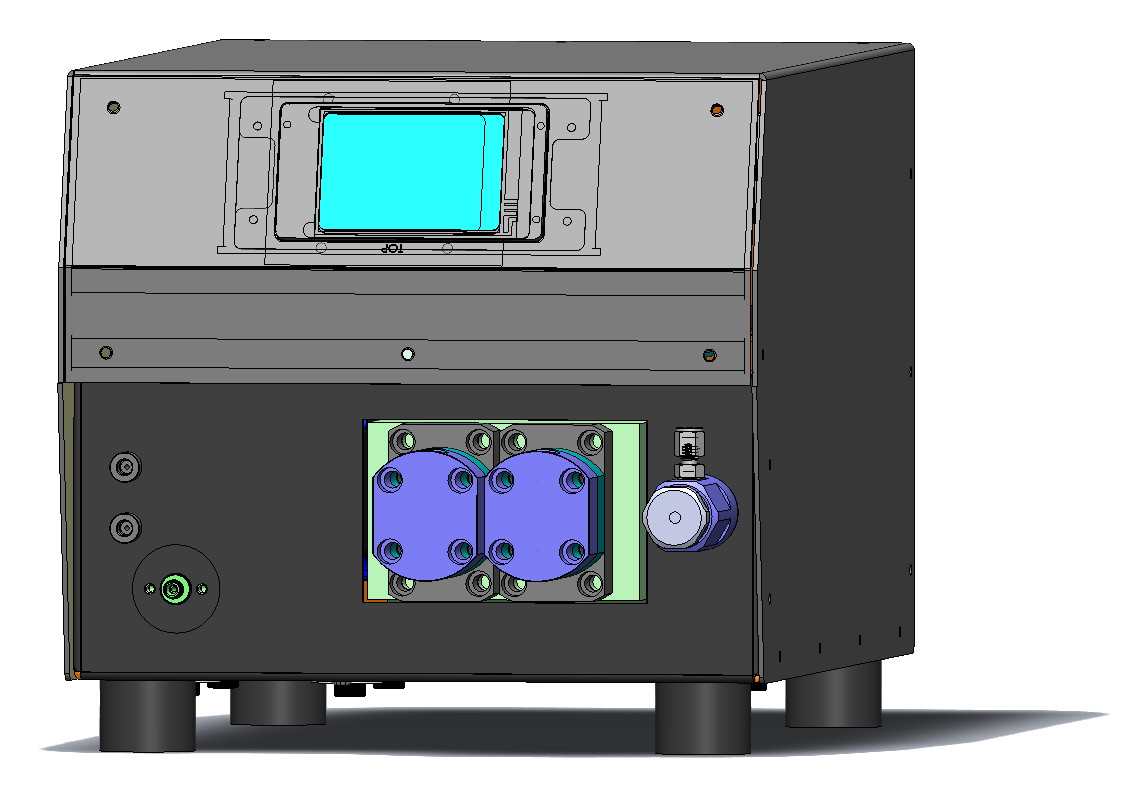

Option #2: Pump + Servo Controller + Hydraulic Module (Transducer + Purge valve + Damper)546-2500-2-pump-assembly-on-a-base-plate-545-2000-1-pump-assy-dual-head-oem-3.jpg

Option #3: Pump + Servo Controller + Hydraulic Module without Damper

Option #4: Pump Assembly in Chassis


Option #1 to #4 are the typical configurations and we will make a custom configuration for your specifications.


ASI Model 545 Star Prep Pump Flyer Print Version

11" x 17" Landscape 2 sided, Reverse pages

ASI Model 545 Star Prep Pump Flyer

8.5" x 11" Portrait 2 sided
