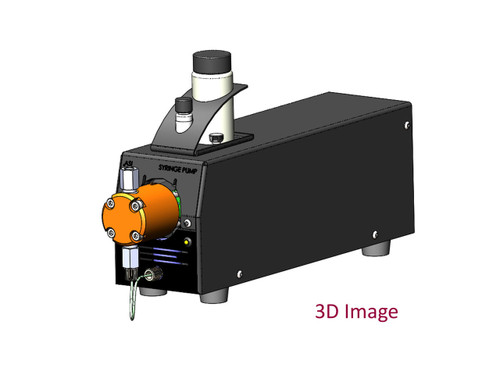

ASI 576 and 578 Infusion Syringe Pump for MS target analyte tuning; ion suppression test & matrix addition. The Infusion Syringe Pump is configured to inject either sample or wash solvent into a post-column medium pressure fluidic system via integrated selector valve.

The ASI 576 and 578 infusion syringe pump features:

  • Superior flow stability

  • 9,000 PSI Maximum operating pressure for 578 Series

  • 20,000 PSI Maximum operating pressure for 576 Series

  • Spring loaded self-priming check valves allow operation in horizontal or vertical mounting orientation

  • ASI Nano check valve technology eliminates need for expensive rotary shear valves. No more contaminates from worn rotor seals.

  • Windows based GUI for computer control (Modbus RTU using RS485)

  • Pressurized fill system speeds refill and prevents cavitation

  • Flow feedback option available for accurate and repeatable Nano flow operation

  • Integrated wash pump option for buffers

  • Patented floating pump seal design for extended seal life
  • Precision screw-driven 750 µL syringe
  • Nanoliter to microliter flow rates
  • Selectable sample or wash solvent flows

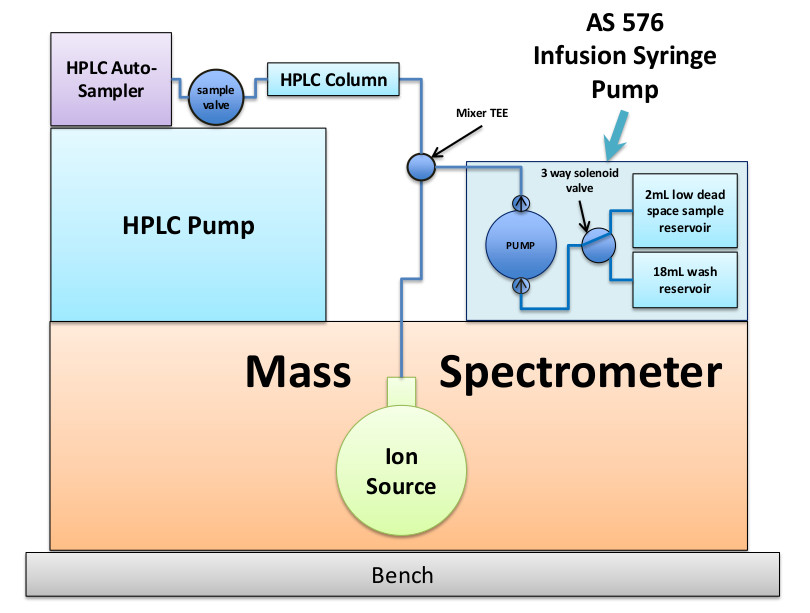

Infusion Syringe Pump Application
