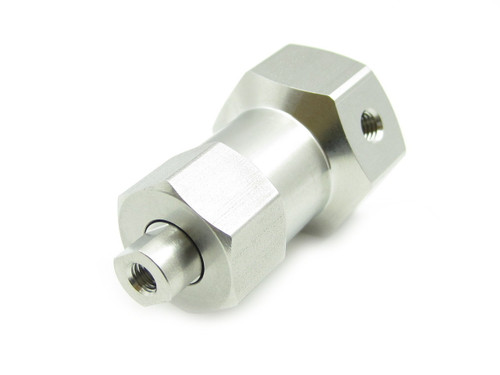

Low Flow Series cartridges: 50 µL through 250 µL are interchangeable and fit in all Low Flow Series In-line, Binary tee and Ternary tee housings.

Delay volume specified below was calculated based on an ASI engineering drawing. The delay volume can be verified by injecting a sample at a known flow rate, then measuring the time this sample first appears at the exit of the mixer.

Back pressure varies directly with flow rate. For example, if the back pressure is 2 PSI at 1 mL/min., it will be .5 PSI at 250 µL/min.

High Temperature rating above 40°C is available.

If you need the mounting tap holes at the bottom, you will need to buy a housing separately.  The mounting option is available only for Binary housing.

Current stock: 0

100 µL Standard HPLC Static Mixer

US$662.50
Part Number: 411-0100
Housing Assembly *
Specifications:

Port size: 10-32 CPI (standard HPLC fittings for 1/16" tube)

Compatible with Thermo Scientific™ nanoViper™ Fingertight Fittings

Maximum Operating Pressure: 6,000 PSI

Maximum Temperature Rating: 40 °C

Delay volume: 100 µL

Back pressure: < 2 PSI @ 1 mL/min. with water

Part Number:
411-0100
Wetted Material:
316 Stainless Steel, PEEK
